Grindy Grindy.

Well I have this week off to help get the shell prepped for when the engine is ready and to also have it seam welded and ready for the roll cage to be installed. Task for the day was to remove as much sealant as possible. This was done with a wire brush attachment for a Dremel. If anyone has done this before you will know full well how shitty a job it is. Fortunately the sealant comes away pretty easily revealing bare metal. I called it a day with about 80% of the sealant gone, there are some bits I can't get to with power tools so it will have to be done manually this week when I can bear to look at the stuff again :) Couple of Images of the Ka itself and the piles of sealant that I collected.


















Also the steering wheel appears to be harbouring intelligent life. Daren't touch it without gloves on :)

Progress, Progress, Progress..

Today me and Wayne spent a few hours applying the final touches to the bottom end of the engine. We fitted the oil and water pump and also cleaned up and fitted the oil pickup. The oil pickup has attempted to be cleaned before by leaving it to soak in petrol for a couple of days but it didn't fully remove some of the crap oil that had been left to harden inside. We decided to cut it open to properly get at it and the had it Tig welded back up. We then sat the sump gasket in place but the sump itself will likely be fitted tomorrow as it is currently being painted (I'm told it will be pink but I shan't hold my breath :)).

Here are a couple of images from the end of the building day.

Brief update

Hello all,

Building up the bottom end was delayed as we decided to have bushes installed into the small ends of the con rods. This aids oil flow and should hopefully prevent premature wear and overheating.

The bottom end was built up on Saturday but took longer than expected due to the spring clips being awkward bastards! Eventually the pistons were attached to their rods and the crank was installed followed by the pistons and rods. Plenty of oil was used in the bores and the bearings to hopefully prevent any premature wear when it comes to starting the engine first time.

All that is left to complete the bottom end is to attach the oil and water pumps to the block.

For now here's a couple of images of the assembly for you :)

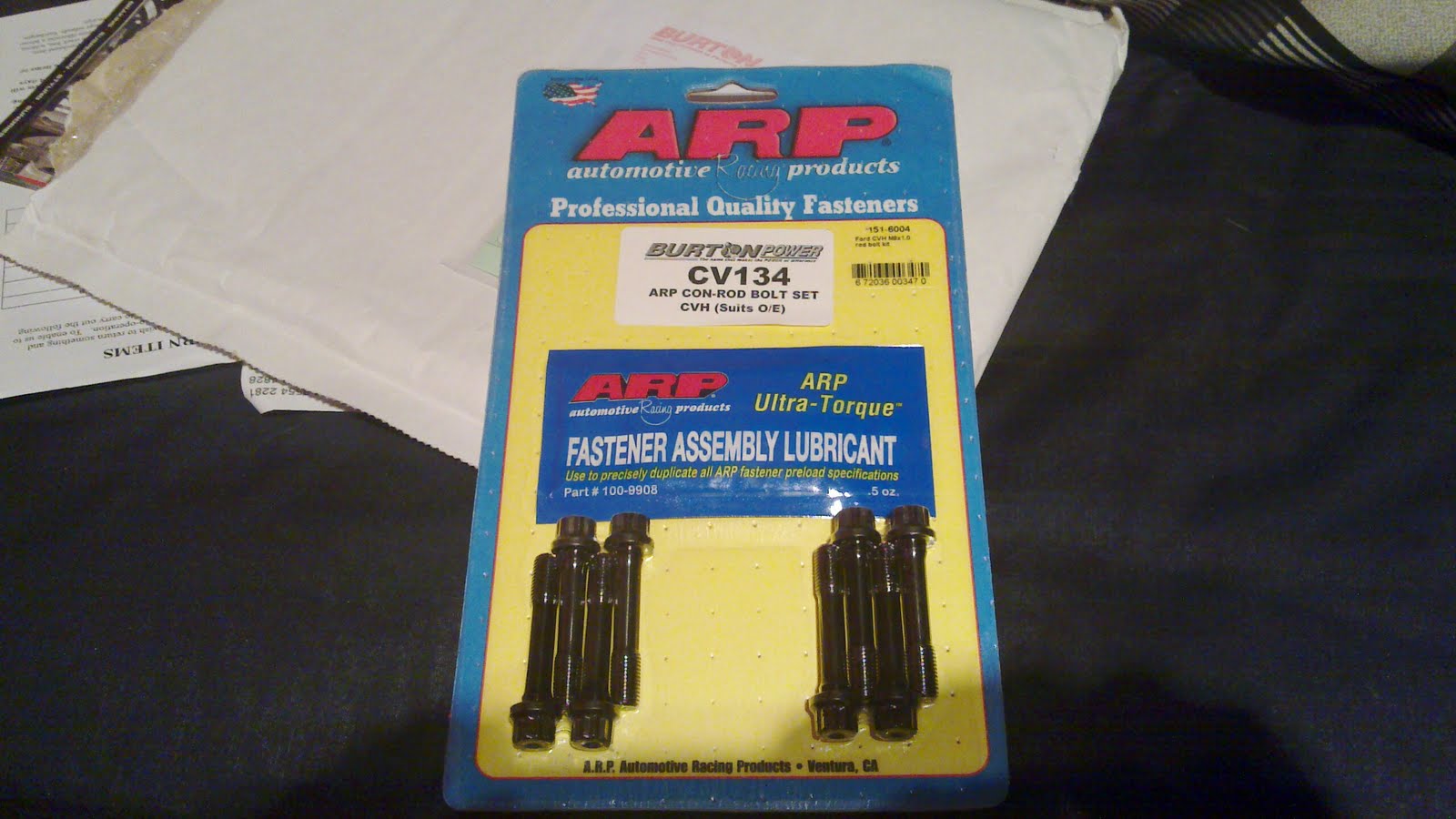

ARP Con-Rod Bolts

Just a little photo update, got a set of ARP Con Rod bolts for the engine build. Just making sure the pistons don't try and make a bid for freedom out the block :)
